Surface performance has become a strategic factor in industrial manufacturing. Components operating under friction, thermal stress, or corrosive environments require engineered coatings that deliver durability and predictable performance over time. In this context, High-Speed Laser Cladding, also known as Rapid Coating, is increasingly adopted as an industrial surface engineering solution.

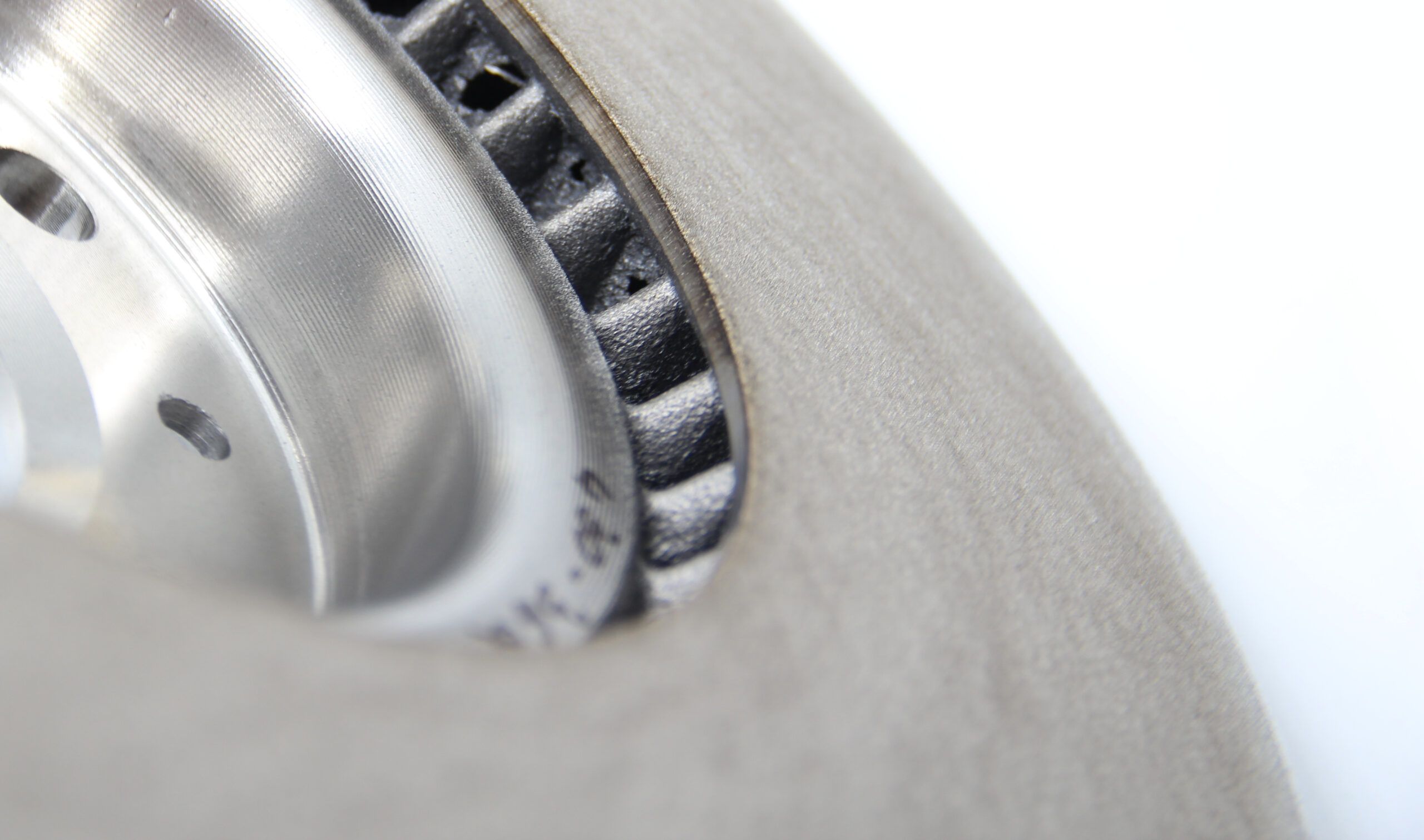

The process uses a laser beam to melt metallic powder onto a component, generating a coating that forms a metallurgical bond with the substrate. The result is a dense and uniform layer with controlled dilution and consistent mechanical properties. Compared to traditional surface treatments, high-speed laser cladding offers improved adhesion and precise control of layer thickness, making it suitable for demanding production environments.

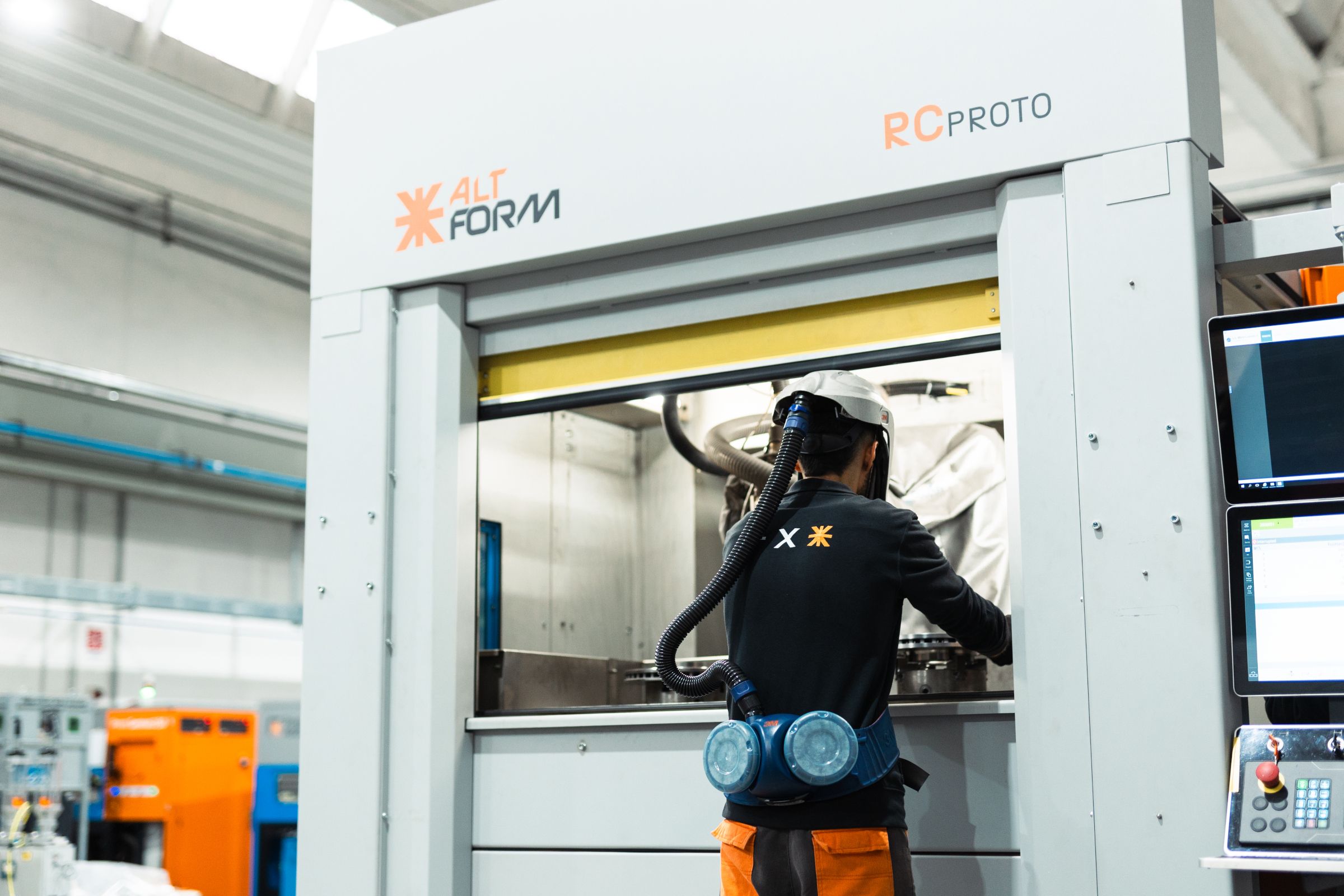

At AltForm, Rapid Coating is developed as a fully industrial solution. The RC Series, available in the configurations RC-Proto, RC-Flex, and RC-Fast, supports manufacturers from initial validation to high-volume automated production.
Designed for industrial deployment
Industrial adoption of High-Speed Laser Cladding depends on more than laser capability. Stable deposition at elevated speeds requires control of melt pool dynamics, synchronized motion systems, and reliable powder delivery.
The RC Series integrates a proprietary AltForm-designed laser head engineered for stable energy distribution and uniform deposition geometry. The interaction between laser power, scanning speed, and powder feed rate is managed to maintain consistent coating quality across extended production runs.
Industrialization also requires integration into factory automation systems. RC platforms are built on a Siemens-based control architecture, allowing seamless communication with production lines, robotics, and supervisory systems. This ensures unified programming, centralized monitoring, and traceability aligned with Industry 4.0 requirements.

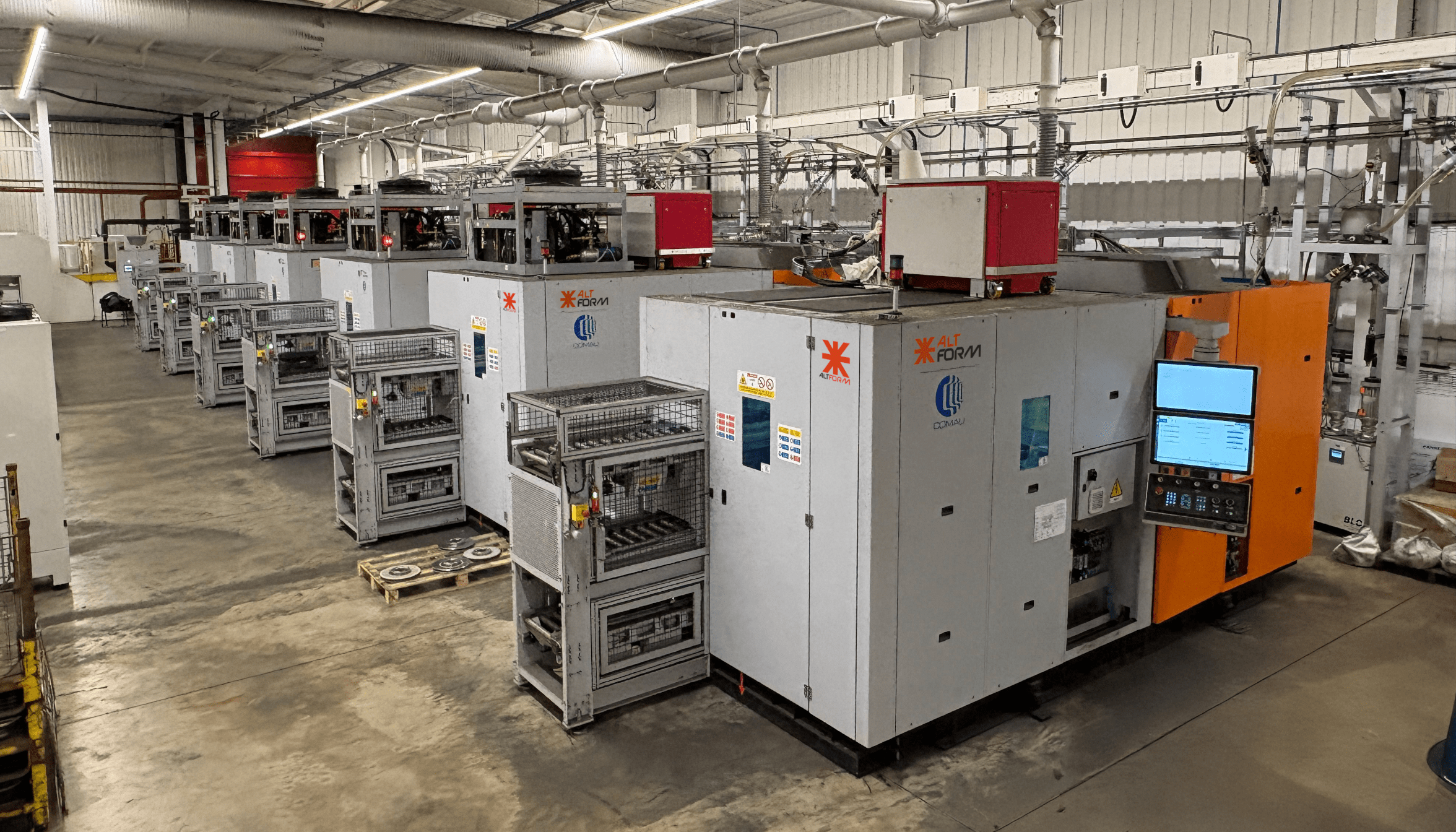

Several Rapid Coating installations are already operating in continuous 24-hour production environments, particularly in automotive manufacturing. These systems combine robotic handling, automated loading and unloading, and synchronized process control to maintain repeatable cycle times and stable output.
Process stability through monitoring and control
In high-speed laser cladding, thermal stability and powder consistency are critical. Variations in heat input or material flow can influence coating thickness, microstructure and adhesion.
AltForm integrates real-time monitoring systems that supervise laser parameters, powder feed behavior and thermal response during deposition. Continuous data acquisition supports stable process windows and allows early detection of deviations. This approach enhances repeatability and reduces variability across production batches.
Stable coating geometry and predictable metallurgical performance are essential when components must comply with regulatory or durability standards, such as those related to particulate emissions in brake disc applications.
Powder management as an industrial priority
Experience in additive manufacturing has shown that powder handling is a decisive factor in industrial metal processing. Material quality, safety, and logistics all depend on how powder is managed within the production environment.
AltForm develops centralized powder management systems for Rapid Coating lines. These systems recover unused powder, automatically sieve it to maintain a consistent particle size distribution, and reintegrate it into the process. Automated sieving ensures that only material within specification is recirculated, supporting coating consistency and mechanical performance.
Centralized supply networks can feed multiple machines within a facility, eliminating the need for manual refilling at individual stations. Operators are not required to handle powder directly, reducing exposure and improving workplace safety. This centralized architecture simplifies logistics and enhances material efficiency in high-volume manufacturing.
Powder management is therefore integrated into the system design rather than treated as an accessory.
Applications beyond brake discs

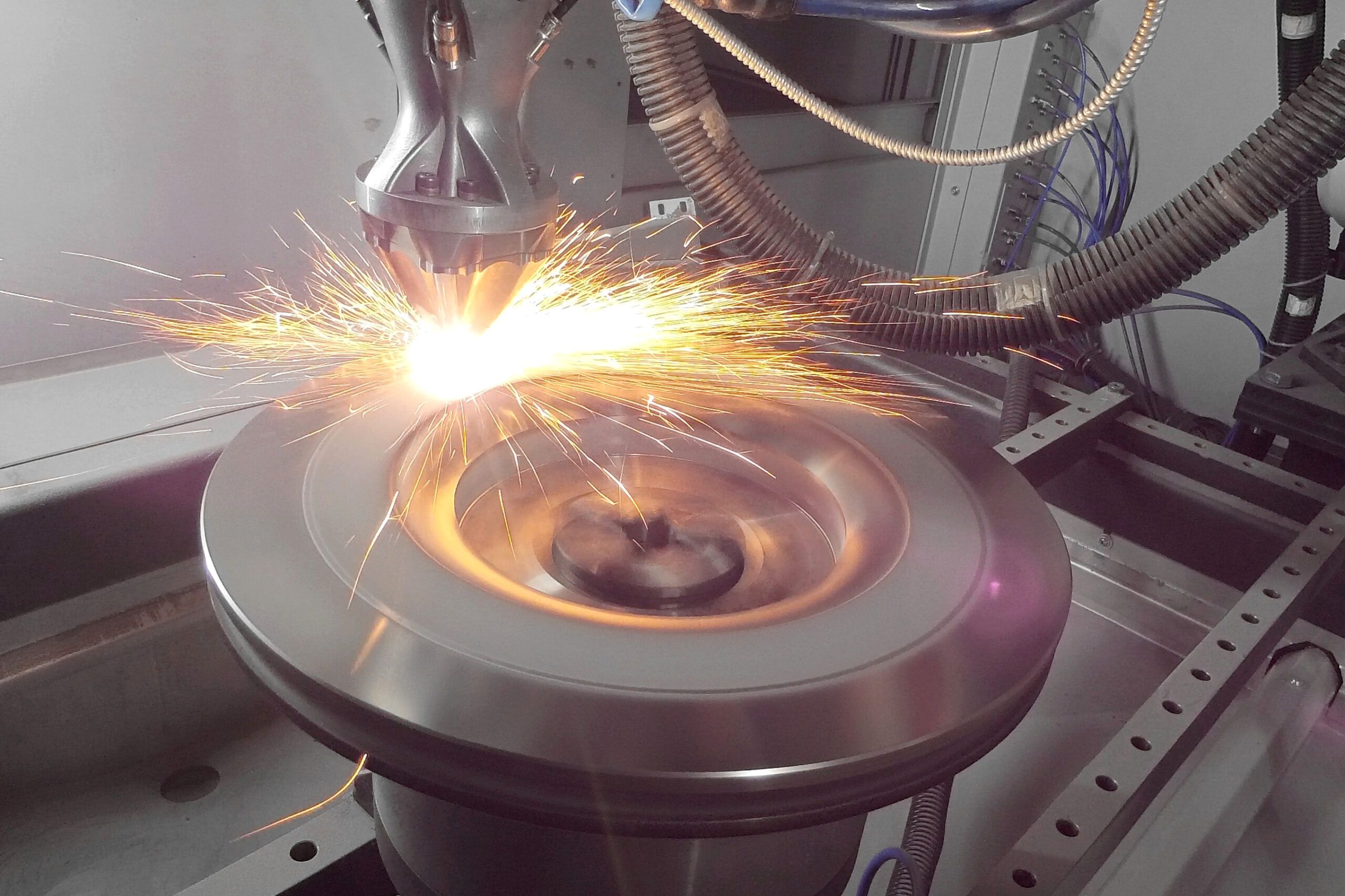

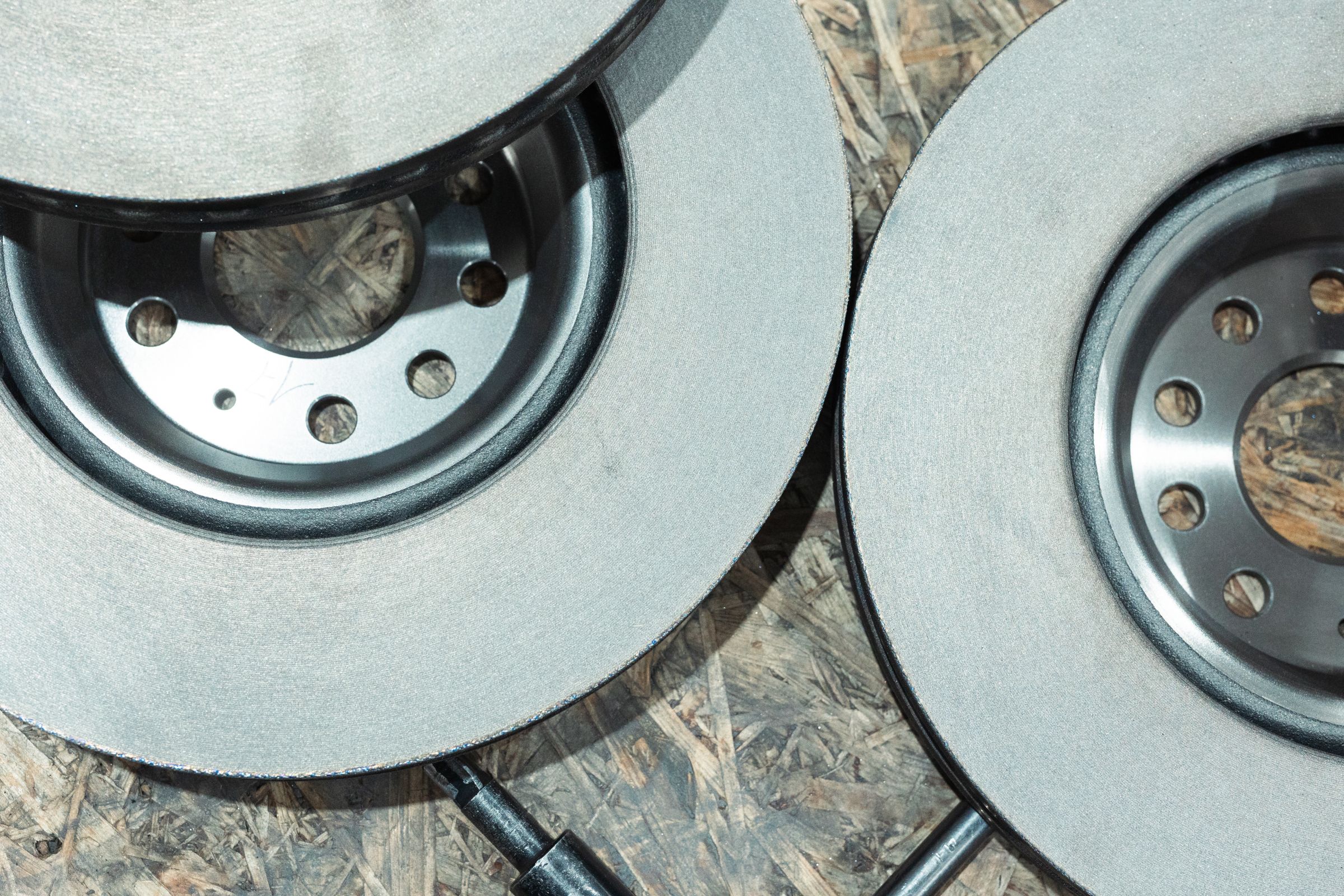

High-Speed Laser Cladding is widely recognized for its use in automotive brake disc coating, where engineered surfaces contribute to reduced particulate emissions and improved durability. However, the RC Series is adaptable to a wide range of components that require high-speed surface treatment.
Rotors, shafts, rings, valves, and energy-sector components can benefit from laser-based coating strategies that enhance wear resistance and corrosion protection. The modular architecture of the RC platform allows configuration according to geometry, throughput, and automation requirements.
Each solution is engineered to align with specific production targets and factory integration strategies.
Automation of advanced laser processes
AltForm focuses on the industrialization of advanced laser technologies. The RC Series reflects this approach by combining laser process engineering, automation integration, and digital supervision within a single production framework.
Rapid Coating systems can be delivered as standalone cells or integrated into fully automated lines, depending on production requirements. The objective is consistent performance, stable output, and integration into the broader manufacturing ecosystem.
